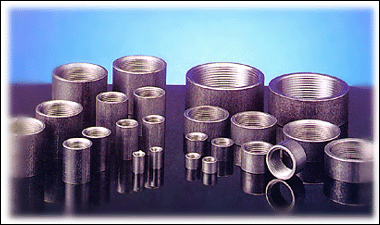

소켓 (SOCKET)
Socket Product of Standards
Carbon Steel Pipe Nipple & Steel Pipe Nipple(SUS 304)
Item → KSB 1533 SUS SOCKET JIS 2302 JIS C8330 BC Conduit Coupling BS 1387 SOCKET
Dia & Length↘

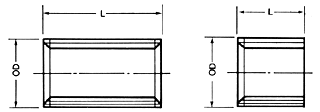

Nominal Size↓ OD L OD L OD L SIZE/OD L OD L
8A 1/4ⁿ 18.5 25 17 25 18.5 25     18.5 27
10A 3/8 B 21.3 26 21 26 21.3 26     22 28
15A 1/2 B 26.4 34 25 33 26.4 34 16BC/25 38 27 37
20A 3/4 B 31.8 36 31 36 31.8 36 22BC/31 44 32.5 39
25A 1 B 39.5 43 38 43 39.5 43 28BC/3705 50 39.5 46
32A 1 1/4B 48.3 48 47 48 48.3 48 36BC/48.5 56 49 51
40A 1 1/2B 54.5 48 53 48 54.5 48 42BC/54.5 56 56 51
50A 2 B 66.3 56 66 56 66.3 56 54BC/68 64 68 60
65A 2 1/2B 82 65 82 65 82 65 70BC/84 72 84 69
80A 3 B 95 71 95 70 95 71 82BC/97 80 98 75
90A 3 1/2 B             92BC/110 85 110 79
100A 4 B 122 83 121 84 122 83 104BC/123.5 90 124 87
125A 5 B 147 92     147 92     151 96
150A 6 B 174 92     174 92     178 96

Item → ISO 50R7 (DIN)
SOCKET		 Threads
Number Per
Inch		 ASTM A53 SOCKET ANSI C 80.1
(UL-6)
CouduitCoupling		 Threads Number
per inch
Dia & Length↘
Nominal Size↓ OD L OD L OD L
8A 1/4ⁿ 18.5 25 19 18.26 30.2     18
10A 3/8 B 21.3 26 19 22.23 30.2 22.2 32.90
15A 1/2 B 26.4 34 14 27 39.7 25.7 41.30
20A 3/4 B 31.8 36 14 33.4 41.3 31.8 42.86
25A 1 B 39.5 43 11 40 50.8 38.7 50.80
32A 1 1/4B 48.3 48 11 48.3 52.4 47.5 52.39
40A 1 1/2B 54.5 48 11 55.9 52.4 54.7 52.39
50A 2 B 66.3 56 11 69.9 54 67.3 54.00
65A 2 1/2B 82 65 11 82.6 79.4 82.6 81.00
80A 3 B 95 71 11 101.6 82.6 98.3 84.20
90A 3 1/2 B     11 117.5 85.7 114.3 87.32
100A 4 B 122 83 11 127 88.9 123.8 90.49
125A 5 B 147 92 11 159.92 95.25 152.4 101.60
150A 6 B 174 92 11 187.71 101.6 182.2 107.95
